Phased array ultrasonic detector
HSPA20-P
The PE pipe phased array inspection solution uses phased array technology combined with dedicated scanner inspection, performs CAD modeling on the structure of PE pipe electric fusion joints, and achieves fast and intuitive defect identification, providing an efficient and accurate solution for PE pipe electric fusion joints.
Quantity:
HS PA20-P Phased Array Ultrasonic Detector - Advanced Weld Inspection Solution
The HS PA20-P Phased Array Ultrasonic Detector represents the cutting-edge in phased array ultrasonic testing equipment, delivering unmatched speed and accuracy for weld inspections. As the best PAUT testing equipment for electrofusion joint evaluation, this portable phased array ultrasonic flaw detector combines high-performance scanning with intuitive operation.
Features
The Phased array ultrasonic detector detector has a fast detection speed. Since the array chip in the probe uses electronic scanning delay, its speed is much faster than the mechanical scanning of traditional probes when performing linear scanning.
High detection sensitivity. The focusing of the ultrasonic beam improves the detection signal-to-noise ratio.
C-scan imaging shows that the recognition efficiency is high.
Recommended configuration:
Instrument: HS PA20-P Phased array ultrasonic detector
Probe: phased array probe 5MHz 32-element probe
Application
Electrofusion welding joint detection of urban natural gas PE pipeline

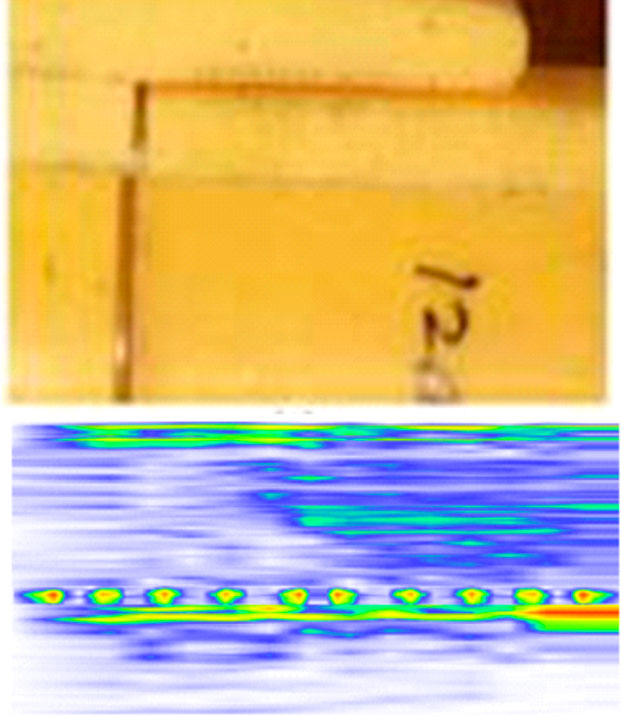

Not fused due to insufficient temperature

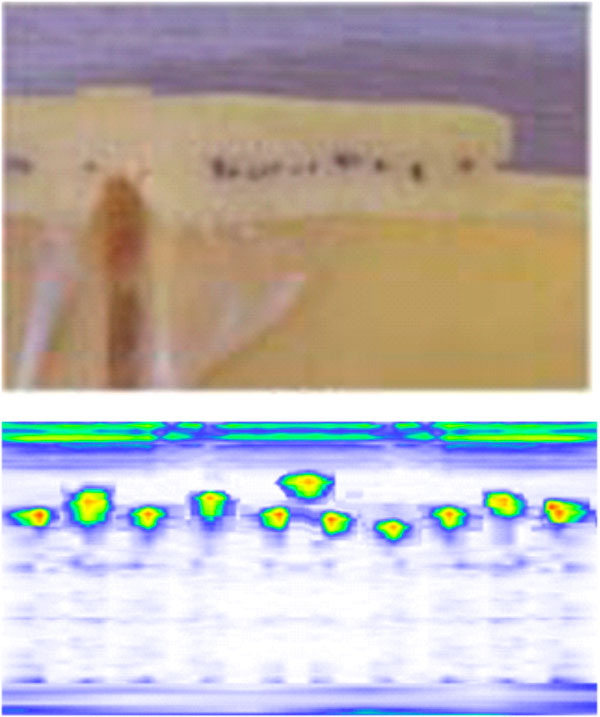

The depth of the cavities formed by overheating or overburning varies

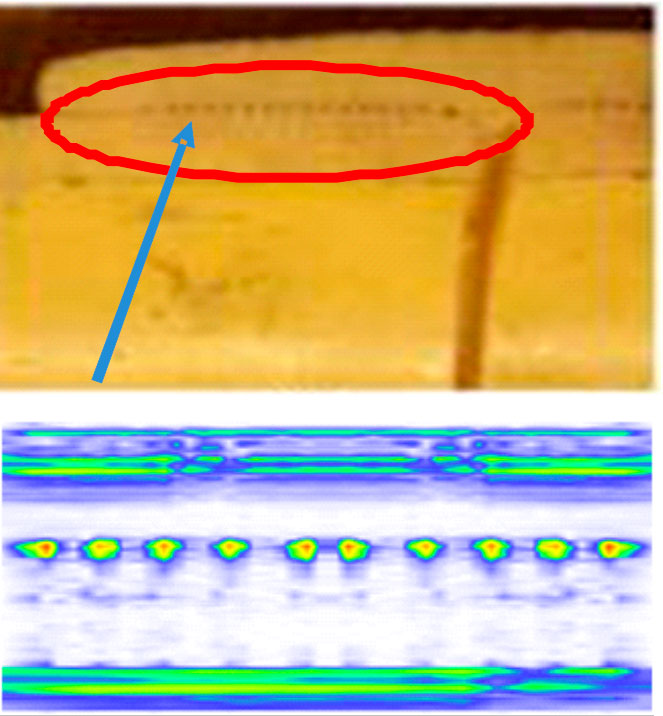

The welding position is normal, the heating wires are arranged neatly, and the surrounding polyethylene materials are fused together
