Phased array ultrasonic detector
HSPA30-E
Quantity:
HS PA30-E Phased array ultrasonic detector is a fully focused phased array detector that supports full focusing of up to 64 array elements, PAUT equipment, NDT solutions. It can solve more complex phased array detection needs and analyze detection data in real time.
Our NDT solution is from China Ultrasonic Phased Array Detector Manufacturers, which can can adapt to 2 sets of TOFD detection channels, support dual phased array TOFD integrated imaging, and can scan welds with a thickness of 100mm at one time.
Functional features

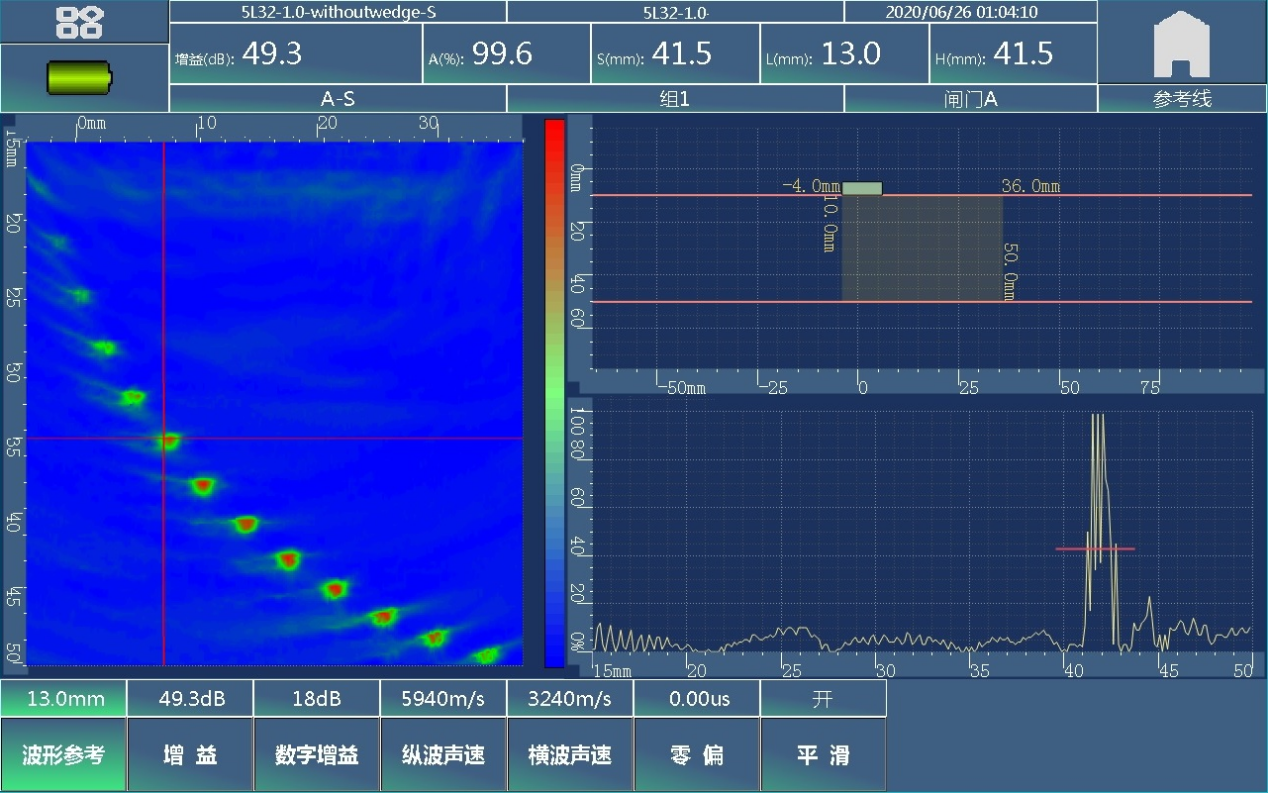

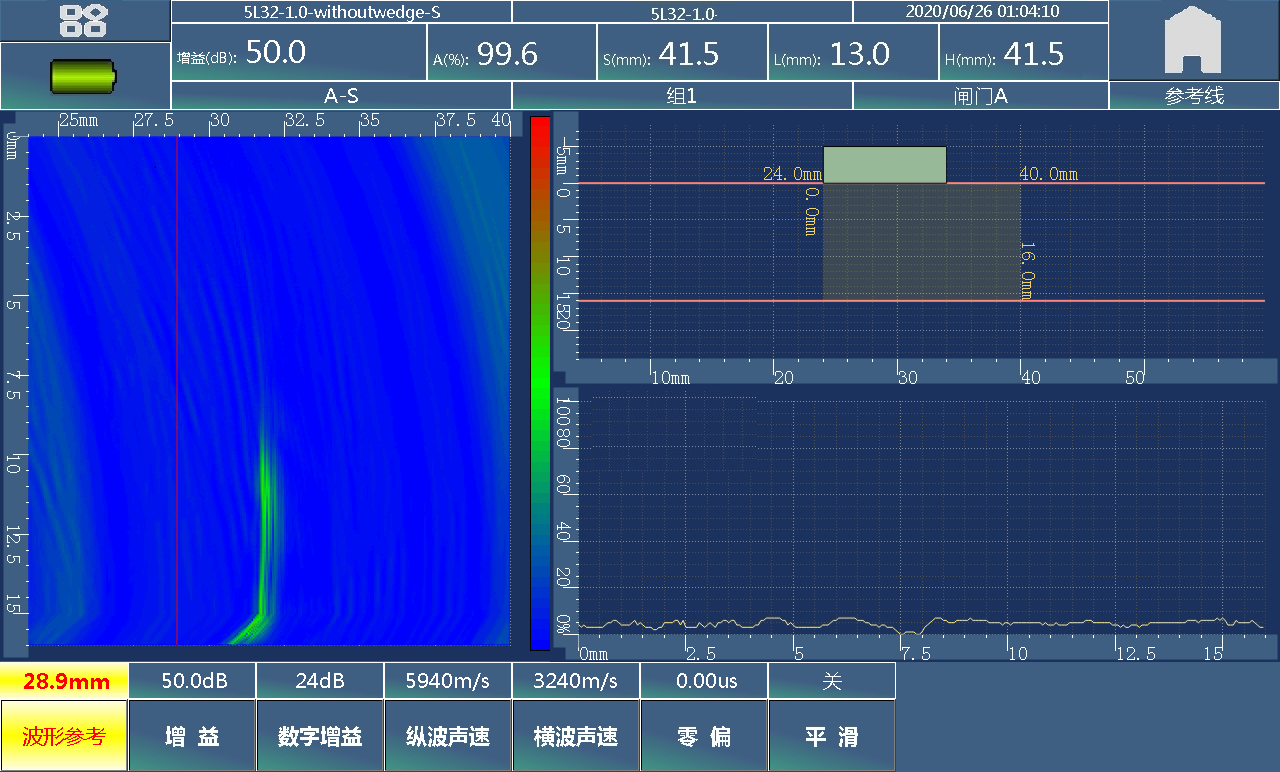

· Support 64 array elements real-time TFM full focus scanning imaging function
· The focusing law can support multiple groups of PA scanning methods and scan imaging at the same time
· Provide TOFD and phased array flaw detector and support dual phased array TOFD integrated imaging (PAUT)
· With dual-line array and double-sided array austenitic stainless steel detection function
· Support multi-channel video display signal output to different screens, and can control feedback
· Dual-axis encoder interface, support two-dimensional corrosion C-scan and wheel probe detection
· Support high-speed network transmission, data can be uploaded and downloaded in real time in Ultrasonic flaw detector
· Support PCI/PWI and other imaging modes
· Support 64 array elements real-time TFM full focus scanning imaging function
· The focusing law can support multiple groups of PA scanning methods and scan imaging at the same time
· Provide TOFD and phased array flaw detector and support dual phased array TOFD integrated imaging (PAUT)
· With dual-line array and double-sided array austenitic stainless steel detection function
· Support multi-channel video display signal output to different screens, and can control feedback
· Dual-axis encoder interface, support two-dimensional corrosion C-scan and wheel probe detection
· Support high-speed network transmission, data can be uploaded and downloaded in real time in Ultrasonic flaw detector
· Support PCI/PWI and other imaging modes
Technical parameters
Data storage ：256GB
Display size ：10.1 inches
Resolution ：1280*800
Viewable area ：216.96*135.6
Touch screen type ：Capacitive touch screen
I/O interface USB： USB3.0/ USB2.0
Ethernet ：1000Mb/s
Video output： HDMI
Encoder ：ODU-7PIN dual-channel encoder
Language ：Chinese/English
Power ：supply DC supply voltage DC24V/3.75Ah
Battery 11.1V - 17Ah
Continuous working time： Not less than 4 hours
Weight： The whole machine without battery is 3.6kg, and the battery is 900g
Display size ：10.1 inches
Resolution ：1280*800
Viewable area ：216.96*135.6
Touch screen type ：Capacitive touch screen
I/O interface USB： USB3.0/ USB2.0
Ethernet ：1000Mb/s
Video output： HDMI
Encoder ：ODU-7PIN dual-channel encoder
Language ：Chinese/English
Power ：supply DC supply voltage DC24V/3.75Ah
Battery 11.1V - 17Ah
Continuous working time： Not less than 4 hours
Weight： The whole machine without battery is 3.6kg, and the battery is 900g
Data storage 256GB
Display size 10.1 inches
Resolution 1280*800
Viewable area 216.96*135.6
Touch screen type Capacitive touch screen
I/O interface USB USB3.0/ USB2.0
Ethernet 1000Mb/s
Video output HDMI
Encoder ODU-7PIN dual-channel encoder
Language Chinese/English
Power supply DC supply voltage DC24V/3.75Ah
Battery 11.1V - 17Ah
Continuous working time Not less than 4 hours
Weight The whole machine without battery is 3.6kg, and the battery is 900g
Display size 10.1 inches
Resolution 1280*800
Viewable area 216.96*135.6
Touch screen type Capacitive touch screen
I/O interface USB USB3.0/ USB2.0
Ethernet 1000Mb/s
Video output HDMI
Encoder ODU-7PIN dual-channel encoder
Language Chinese/English
Power supply DC supply voltage DC24V/3.75Ah
Battery 11.1V - 17Ah
Continuous working time Not less than 4 hours
Weight The whole machine without battery is 3.6kg, and the battery is 900g
Phased array ultrasonic detector size ： 340mm×230mm×100mm
Applications
Phased array ultrasonic testing (PAUT) equipmentPhased array ultrasonic testing (PAUT) equipment
Fully focused phased array inspection of plates, pipes, and welds
With 2X32 dual-line array and double-sided array austenitic stainless steel inspection functions,Phased Array Ultrasonic Tester - Precision Crack Detection
More suitable for fully focused phased array inspection of more complex structures or materials, such as PE pipe electric and hot melt welding, steel skeleton PE pipe electric fusion welding, composite materials, TKY butt welds, flanges, blades, etc.
Fully focused phased array inspection of plates, pipes, and welds
With 2X32 dual-line array and double-sided array austenitic stainless steel inspection functions,Phased Array Ultrasonic Tester - Precision Crack Detection
More suitable for fully focused phased array inspection of more complex structures or materials, such as PE pipe electric and hot melt welding, steel skeleton PE pipe electric fusion welding, composite materials, TKY butt welds, flanges, blades, etc.
