Phased array ultrasonic detector
HSPA20 -E
The annular seam detection solution for fluid transmission pipelines in the petroleum and petrochemical industry uses ultrasonic phased array + TOFD technology with a customized scanner to meet customers' requirements for fast and accurate pipeline annular seam detection.
Quantity:
HS PA20-E Phased Array Ultrasonic Detector - The Ultimate Pipeline Weld Inspection Solution
The HS PA20-E Phased Array Ultrasonic Detector represents the pinnacle of PAUT detector technology, combining phased array and TOFD capabilities in one powerful ultrasonic phased array NDT system. This portable phased array ultrasonic flaw detector delivers comprehensive weld evaluation for critical pipeline applications, making it the best PAUT testing equipment for the oil and gas industry.
Functional features:
PAUT detector instrument PAUT+TOFD can realize all-round detection of pipeline welds
Automatic crawling mechanism, more accurate track positioning, controllable walking, stable coupling
Software demonstration meets the current standards of various types of automated ultrasonic testing

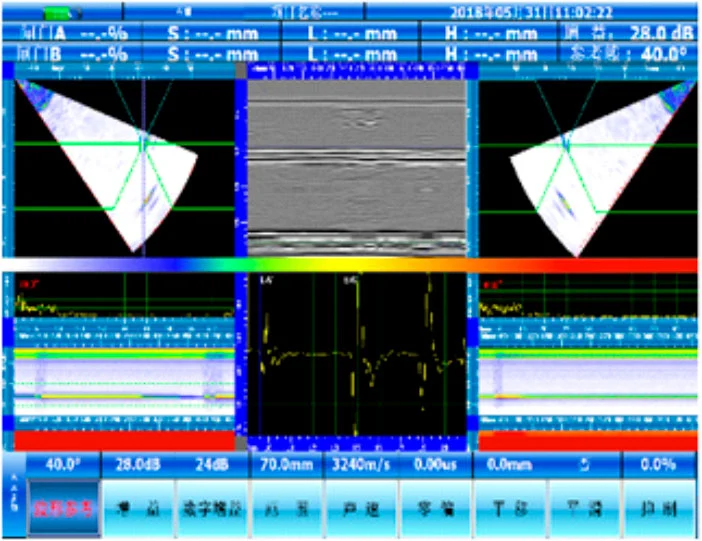

For special process workpiece detection, use the focusing characteristics of phased array to detect subtle defect features and quickly image the defect location on the PAUT detector
Automatic crawling mechanism, more accurate track positioning, controllable walking, stable coupling
Software demonstration meets the current standards of various types of automated ultrasonic testing
For special process workpiece detection, use the focusing characteristics of phased array to detect subtle defect features and quickly image the defect location on the PAUT detector
Recommended configuration
Host: HS PA20-E Phased array ultrasonic detector
Phased array probe: 5L32X2-06X10-A30 (double-sided probe)
Phased array probe wedge: 37° (SA30-60S)
TOFD probe: C543 (5MØ6)
TOFD probe wedge: 63°

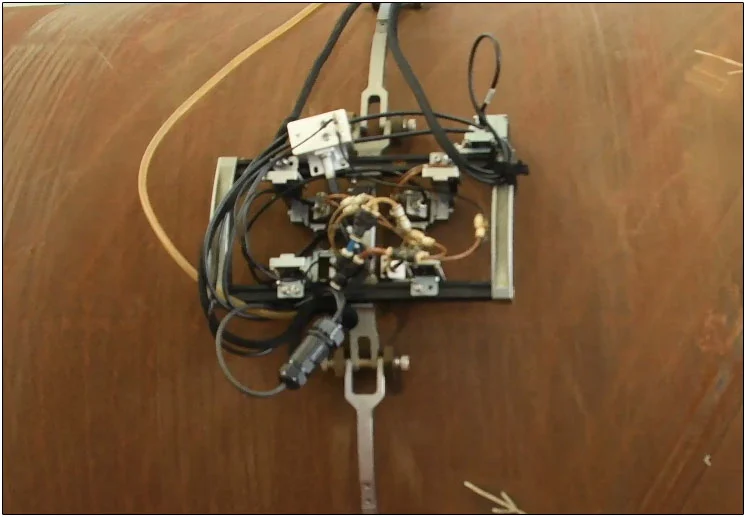

Scanner: PAUT scanner
Crawling track: customized
Water spray device: pressure kettle
Host: HS PA20-E Phased array ultrasonic detector
Phased array probe: 5L32X2-06X10-A30 (double-sided probe)
Phased array probe wedge: 37° (SA30-60S)
TOFD probe: C543 (5MØ6)
TOFD probe wedge: 63°
Scanner: PAUT scanner
Crawling track: customized
Water spray device: pressure kettle
Application

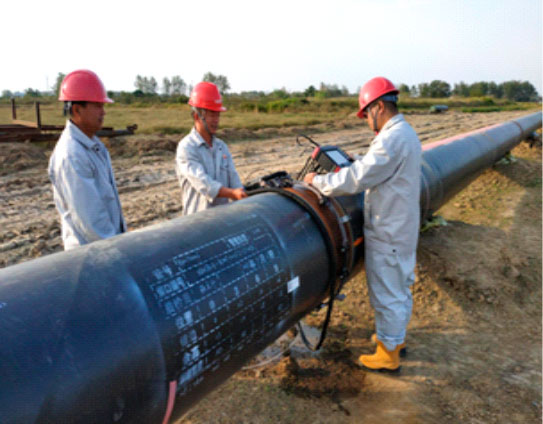

PAUT detector is suitable for all kinds of petroleum and petrochemical long-distance pipeline girth weld detection
