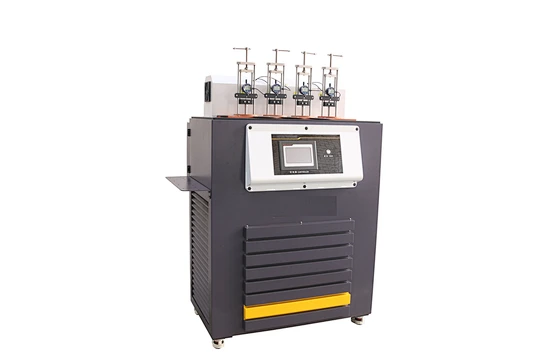

Low-Temperature Compression Set Tester
HY-8736
Low-Temperature Compression Set Tester is a rubber static compression testing device. It clamps a standard specimen between its flat plates and compresses the specimen to a specific ratio via a screw. After compressing the specimen at different low temperatures for a certain period, the tester automatically measures the specimen's permanent compression set.
Quantity:
HY-8736 Low-Temperature Compression Set Tester
Based on the following standards:
Based on the following standards:
Product Description:
This is a rubber static compression tester. A standard specimen is clamped between the flat plates of the tester and compressed to a specific ratio using a screw. After a period of compression at different low temperatures, the specimen's permanent compression set is automatically measured.
Technical Parameters:
1. Temperature Range: Room Temperature to -70°C
2. Temperature Control Accuracy: ±0.5°C
3. Temperature Resolution: 0.1°C
4. Displacement measurement range: 0-12.7mm
5. Measurement accuracy: 0.001mm
6. Number of measurement groups: 4
7. Cooling method: Two-stage, fully enclosed compressor cooling
8. Weights: 135g, 298g, 674g, 1482g
9. Inner box dimensions: Approximately 387 × 277 × 164mm
10. Volume: Approximately 950 × 665 × 1550mm
11. Weight: Approximately 400kg
12. Power supply: AC380V 50Hz 20A
This is a rubber static compression tester. A standard specimen is clamped between the flat plates of the tester and compressed to a specific ratio using a screw. After a period of compression at different low temperatures, the specimen's permanent compression set is automatically measured.
Technical Parameters:
1. Temperature Range: Room Temperature to -70°C
2. Temperature Control Accuracy: ±0.5°C
3. Temperature Resolution: 0.1°C
4. Displacement measurement range: 0-12.7mm
5. Measurement accuracy: 0.001mm
6. Number of measurement groups: 4
7. Cooling method: Two-stage, fully enclosed compressor cooling
8. Weights: 135g, 298g, 674g, 1482g
9. Inner box dimensions: Approximately 387 × 277 × 164mm
10. Volume: Approximately 950 × 665 × 1550mm
11. Weight: Approximately 400kg
12. Power supply: AC380V 50Hz 20A
