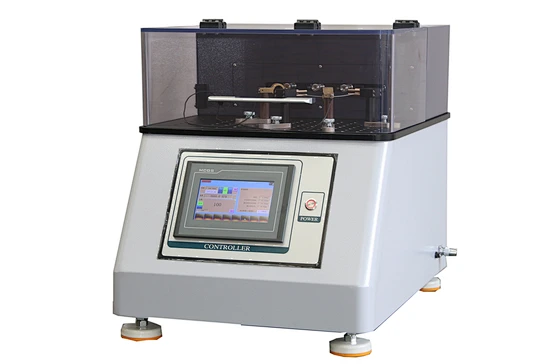

Hunter Fatigue Testing Machine
HY-3600
Hunter Fatigue Testing Machine is suitable for conducting rotating fatigue life testing. It specifically targets steel cord and other wire materials that are used in tire pullers, providing targeted testing support for evaluating the fatigue performance of such materials.
Quantity:
HY-3600 Hunter Fatigue Testing Machine
Based on the standard:
ASTM E2948
Product Description:
This machine is suitable for rotating fatigue life testing of steel cord and other wire materials used in tire pullers.
Technical Parameters:
1. Maximum speed: 3600 rpm
2. Counting range: 0-9999999, programmable
3. Steel cord diameter: 0.2mm to 2.0mm
4. Axle spacing range: 24mm to 250mm
5. Axle spacing adjustment accuracy: ±0.02mm
6. Axle spacing adjustment: Software digital input, automatic adjustment
7. Operating platform dimensions: 450mm wide, 320mm deep
Based on the standard:
ASTM E2948
Product Description:
This machine is suitable for rotating fatigue life testing of steel cord and other wire materials used in tire pullers.
Technical Parameters:
1. Maximum speed: 3600 rpm
2. Counting range: 0-9999999, programmable
3. Steel cord diameter: 0.2mm to 2.0mm
4. Axle spacing range: 24mm to 250mm
5. Axle spacing adjustment accuracy: ±0.02mm
6. Axle spacing adjustment: Software digital input, automatic adjustment
7. Operating platform dimensions: 450mm wide, 320mm deep
